• Product Description
    Company Info.
    <
    >
    <
    >
    Basic Info.
    Processing customization:
    Yes
    Model:
    TZ
    Shape:
    Strip shape
    Production technology:
    Cold pressing
    Features:
    Explosion-proof
    Contact material:
    red copper
    Insulator material:
    red copper
    Core number:
    multi-core
    Needle count:
    no
    Line length:
    unlimited
    Product Description

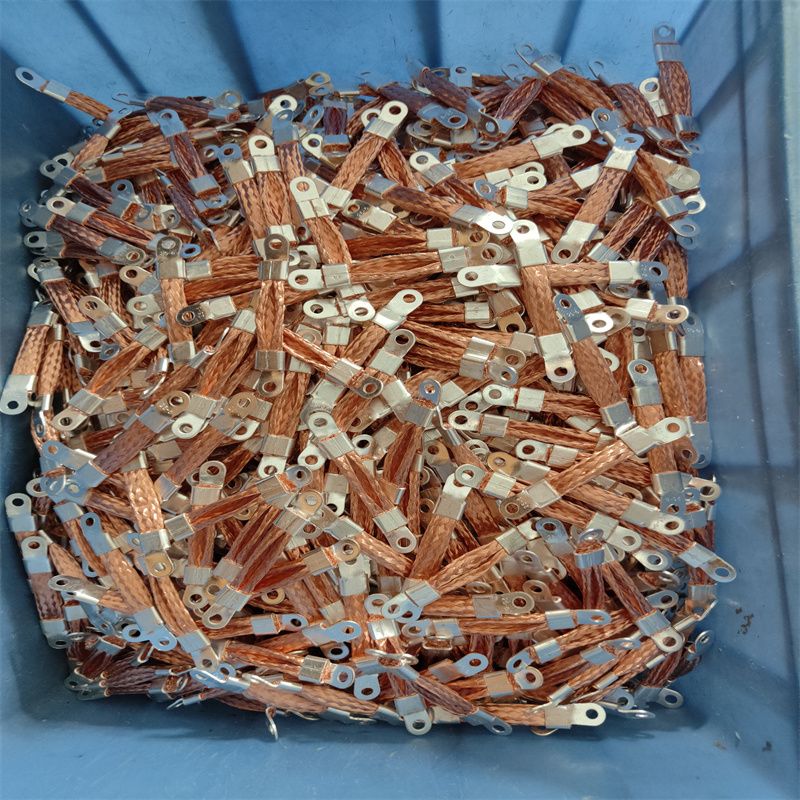

    The lightning protection copper wire is made of 2*40 conductive copper cable, the contact area is not less than 150 square mm, or the cross section of 25 square copper braided wire is limited by cold pressing method. It is crimped at both ends of the braided belt. It can also be added with copper pipe treatment to make soft connection. It can be perforated and tinned according to different needs of customers.

    Wire material: copper braided wire, copper braided tape, tinned copper braided wire, tinned copper braided tape, copper stranded wire. Copper braided belt is woven with oxygen-free copper wire, wire diameter 0.10mm,0.12mm,0.15mm monofilament, according to customer requirements, flexibility, electrical strength and so on. Contact surface material:OT terminal, DT terminal, copper tube (surface can be silver, tin, nickel, etc. according to customer requirements)
    Crimping method: made by cold pressing method, according to the thickness requirements or according to customer parameters, different punches and hydraulic presses are selected for crimping. Insulation material: Yajie company standard planning no insulation material, according to customer requirements can be used PVC insulation sleeve or hot tube insulation maintenance fixed.
    Process: with bare copper wire, copper braided wire, as a conductor, both ends of the selection of copper terminals, joint dimensions produced according to customer requirements, with cold pressing method restrictions. Tin plating and silver plating are available according to customer requirements. After special treatment, it is made into a soft connection with high intensity and high current. Yajie copper wire product features: high conductivity, flat surface, bright, good contact surface, superior conductive function.     ​​​​​​​
    Strong applicability, good flexibility, convenient equipment, easy heat dissipation, resistance to twists and turns. Uses: Used in inflammable and explosive places to prevent power leakage and electrostatic sparks. Use metal with good conductivity to connect two flanges firmly. Grounding pipes and equipment. Lightning protection for curtain walls and doors of high-rise buildings is generally done to prevent poor contact and spark.
    Drilling: There is no drilling requirement in the standard plan of Yajie Company. Drilling can be carried out on the contact surface according to the drawing or customer's parameter requirements. Special planning: according to user requirements or drawing parameters required auxiliary lathe, washing bed, cutting bed and other equipment processing.
    Know Your Supplier
    Name（chinese）
    Name（English）
    Dongguan city Yajie Electronic Materials Co., Ltd
    China credit code
    Identity Verification
    Registered Capital
    10,000,000 CNY
    Operating term
    2011-05-12 ~ ****
    Product Category
    Copper braided wire seriesCopper wire seriesCopper soft connection seriesMetal shielding network seriesFlange electrostatic jumpercopper bar
    Company Registered Address:
    No. 17, Jiangbei 2nd Road, Shengqiangang, Huangjiang Town, Dongguan city
    Address
    Dongguan, Guangdong, China
    Nearby port
    Guangzhou
    Dongguan Yajie Company is specialized in the production of (copper flexible connections)(copper braided wires)(copper stranded wires)(copper brush wires)(expansion joints)(copper wires;)(Copper braided tape)(Copper conductive tape)(Copper bar)(Tinned copper braided tape)(Aluminum conductive tape)(Epoxy coated copper bar)(Plastic-sprayed conductive copper bar)(Battery soft copper bar)(Stainless steel braided tape)(Ground soft connection)(Flange electrostatic jumper wire)(Copper foil soft connection)(Copper sheet soft connection)(Copper woven mesh)(Copper shielding mesh)(Braided copper tape)(Braided copper wire)(Braided soft connection)(Conductive woven woven tape)(Conductive soft connection)(Lightning protection copper wire)(Copper bus soft connection)(Copper bus soft connection)(Copper wire braided tape)(Copper ground wire)(Copper grounding braided wire)(copper grounding soft connection)(copper bar soft connection)(copper stranded wire soft connection)(stainless steel braided wire)(aluminum braided tape)(aluminum conductive tape)(aluminum soft connection)(copper-clad aluminum braided tape)(copper-clad aluminum braided tape)(copper-clad steel braided tape)(copper-clad steel braided wire)(ground wire)(gas-liquid filter)(flange electrostatic jumper wire)(vapor-liquid filter) Crochet wire mesh)(metal wire mesh)(Shielding wire mesh)(glass fiber sleeve)(Silicon sleeve)(glass fiber sleeve)(self-extinguishing tube)(inner fiber outer rubber sleeve)(insulating sleeve)(heat shrink tube)(PVC sleeve)(electrical sleeve) and other products. The copper weaving series is used in high and low voltage electrical appliances, vacuum appliances, high and low voltage switchgear, new energy vehicle batteries, bus ducts, transformers, electroplating tanks, welding machines, automobiles, electric locomotives, electric furnaces, mining explosion-proof electrical appliances, generator sets, soft connection of carbon brushes and wires, etc. The insulating sleeve series is mainly used in electronics factories, lighting factories, motor factories, electric machinery factories, and electrical equipment factories to provide insulation, high voltage resistance, protection, high temperature resistance and flame retardant effects. The company adheres to the business philosophy of "customer first, forge ahead" and adheres to the principle of providing high-quality services to our customers. Welcome to visit!
